Ways to Install Pogo Pin Connectors
If you are considering applying spring-loaded connectors to your device, you must be wondering which installation method is more suitable for using pogo-pin connectors. This article will take you through the differences between all options, analyze the advantages and disadvantages, and give you an opinion on the most suitable one.
If you have specific questions, please contact us directly and our professional engineers will provide you with the best advice. Our engineers will propose a design that best meets your cost considerations according to your specifications and needs.
How to install the connector by soldering?

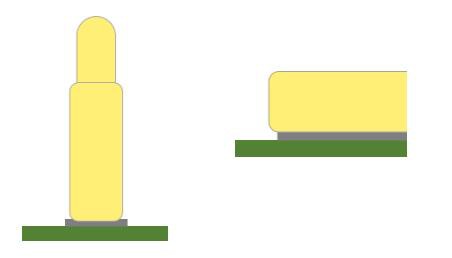

1. The first and easiest way is to use solder paste to fix the connector to the tin plate. While this is the easiest way, we generally don't recommend it.
Generally speaking, this method is less stable, and the probe will break away from the tin plate due to vibration interference and pressure.

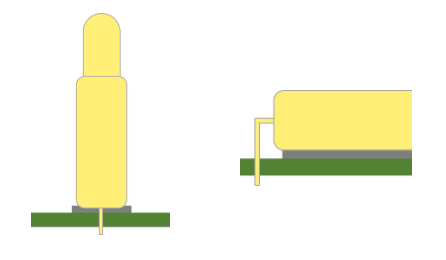

2. It is more commonly used to fasten large components to a printed circuit board by inserting a pogo pin into a tail, which is fixed to the printed circuit board by the tail.
In this way, the single needle will have an extra support point and be more stable.

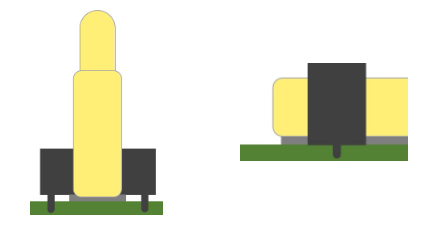

3. The method is to use the rubber core with the tripod, first install it on the circuit board safely, and then install the pogo pins on the tin plate with solder paste or pressure.
This method is suitable for most situations and has a certain degree of stability, but it is recommended to consider the cost issue.
4. Combining the second and third methods, first fix the rubber core on the circuit board, and then attach the pogo pin connector to the tail and fix it on the board.
This is a very safe way to install the connector, and it makes the connector more stable and durable. If you have unlimited cost considerations, I recommend this installation method.
